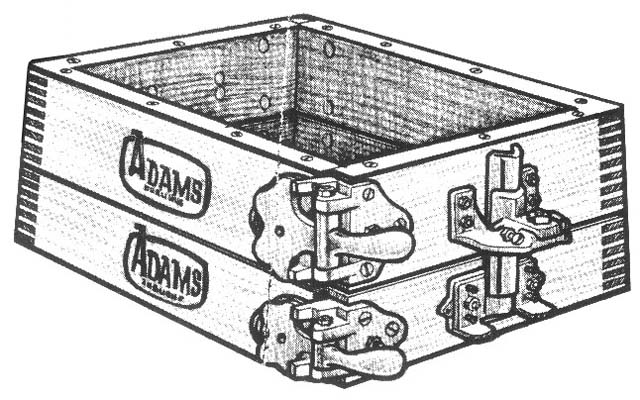

ADAMS Cherry Wood "SNAP" FLASKS
Hines Adams Style Cherry Snap Flasks Are manufactured from the highest grade cherry lumber. Exceptional strength is attained through "hot glue" clippings and machine locking.
Sections are finished 11/8" on all standard size flasks, 1¼" on larger flasks. Your choice of size and depth is available in both straight and taper styles.
Snap Flasks come standard with adjustable lever latches. These latches allow for wear adjustment assuring positive lock and solid corners at all times.
A wide range of pin styles are available to match your present equipment and pin centers.

STANDARD SPECIFICATIONS

Dimensions (inside of parting): Minimum: 8" x 8"
                                                         Maximum: 30" x 54"
Depth of Cope or Drag: 2½" and up
Taper: 0°, 3°, 4°, 5°

TRUNNIONS
T-3 ALUMINUM TRUNNION WITH STEEL BALL ATTACHMENT
With steel ball wearing surface.  For operations where cope or drags must be rolled over individually
T-5 ADAMS ROTA-LIFT® and Rol-N-Rap® FLASK TRUNNIONS
Split trunnions for use on RotaLift® and Rol-N-Rap® type machines.

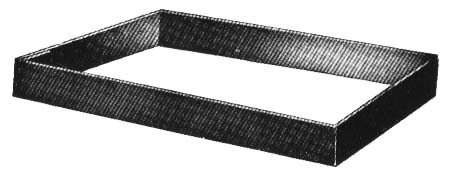

FABRICATED STEEL BANDS
Available in 10 gauge, 3/16" and 1/4" thickness in 2" and 3" depths.  Electrically spot welded joint.  Unless otherwise specified, we make these bands 3/16" smaller than the flask each way, so they will enter the flask easily.  Steel Bands are made to your order, in any length, width or depth.
